하이 라이트
K35 원축 증분형 엔코더
,막힌 구멍 점진적 Encoders
,1000ppr 원축 증분형 엔코더
-
인코더 유형증분형 엔코더
-
외경35mm
-
두께35mm
-
설비 면적설비 면적
-
원축 타입맹목적인 구멍
-
원축 지름원축 지름
-
결의안30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4
-
출력 단계단계 A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
-
원래 장소상하이, 중국
-
브랜드 이름HENGXIANG
-
인증CE,ISO9001
-
모델 번호대략 K35 부호기 부품번호
-
최소 주문 수량1 PC 부호기가 명령을 시작합니다
-
가격negotiable
-
포장 세부 사항각각 1 조각은 한 개의 카톤 박스로 압축되었습니다
-
배달 시간3-5 샘플 순서, 대량 주문을 위한 7-15 근무일을 위해 일로 일합니다
-
지불 조건인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 신용 카드, 마스터 카드, 페이팔, 등
-
공급 능력매년마다 100K 부분

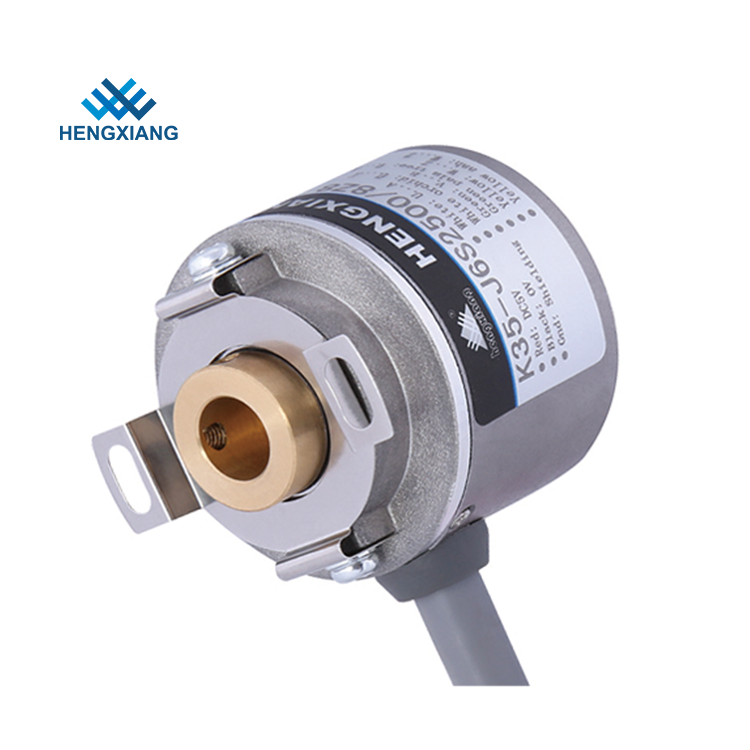

1000ppr 막힌 구멍 K35 원축 증분형 엔코더
Hollow shaft incremental encoder K35 blind hole encoder external diameter 35mm 1000ppr
Some K35 encoder part number
K35-J12C1000/4
K35-J3V1024
K35-J2F2048
K35-J6C2500
K35-J12C2500/8
K35-J12E2500/6
K35-J4E1200
K35-J3V720
K35-J12C1024/8 DC5V
K35-J3NH1000
Specification for K35 servo motor encoder
| Items | Basic parameters |
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 35mm |
| Thickness | 35mm |
| Installation dimension | 40mm(spring plate 35T40); 29mm(35T29) |
| Hollow shaft type | blind hole |
| Hollow shaft diameter | 6mm,8mm;10mm |
| Resolution | 30;36;50;60;100;200;250;256;300;360;400;450;500;512;600; 1000;1024;1200;2000;2048;2500; 4096;5000 |
| 1000/4;1000/6;1000/8;1024/4;1024/6；1024/8；2000/4；2000/6；2000/8；2048/4；2048/6;2048/8；2500/4；2500/6；2500/8;4096/4;4096/6;4096/8;5000/4;5000/6;5000/8 | |
| Output phase | Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W- |
| Supply voltage | DC5V & DC8--30V |
| Insulation strength | AC500V 60s |
| Insulation resistance | 10MΩ |
| GND | not connect to encoder |
| Mark to Space ratio | 45% to 55% |
| starting torque | less than 5.9x 10-3 N.m |
| Intertia moment | less than 1x 10-6kg.m2 |
| Shaft load | Radial 30N; Axial 20N |
| Top REV | 5000RPM |
| Bearing life | 1.5x109 revs at rated load(100000hrs at 2500RPM) |
| Environmental temperature | Operating:-20 ～+80°；storage:-25 ～+90° |
| Environmental humidity | Operating and storage: 35-85%RH(noncondensing) |
| Vibration(endure) | Amplitude 0.75mm,5-55Hz,2 hours for three axis individually |
| Sock(endure) | 490m/s2 ,11 ms three times for X,Y,Z direction individually |
| Shell Material | die cast aluminum |
| Certification | CE |
| package | Carton box |
| Net weight | About 100g (with package) |
Our advantage
· Over 18 years encoder production experience
· More than 20 years experienced engineers
· Professional working team
· High quality standard
· Quick Response time
· Utility Model Patent Certificate
· Own brand and unique brand
· CE certification for all models
· Prompt delivery date
· 100% full inspection before shipment
Factory Encoder Production Capability
5000 pieces per month
-------- Production Line Capacity
50000 pieces per year
--------Actual Units Produced (Previous Year)
Payment terms:
1. T/T, western union, credit card, Paypal, etc
2. 3-5 working days after payment received
3. Encoders will be shipped once ready
Matters needing attention
1. Must choose the power supply voltage: DC5V or DC8-30V
2. Must choose leaf spring plate model number if you select hollow shaft encoder
3. Please advise the motor speed (RPM) that you actually use
4. If you have any other requirements, please provide detail parameter
